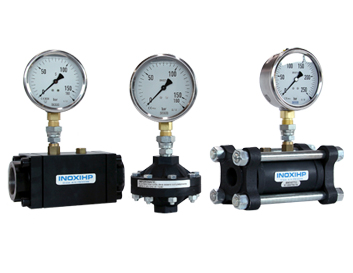

Pressure gauge separators

Separated fluids pressure gauge holders made of a body with a chamber connected to the process fluid, an elastic membrane and an intermediate chamber filled with oil, to which a pressure gauge is connected. Very easy use, practical, easy to fit and completely washable without disassembling.

BRANCHED VERSION – SD1

  • SD1 separator for branched mounting
Working pressure: 50 bar max
Working temperature: 100°C max
IN-LINE VERSION – SM 40/50/60
  • SM 40 separator for in-line mounting
Working pressure: 150 bar max
Working temperature: 100°C max
  • SM 50 separator for in-line mounting
Working pressure: 150 bar max
Working temperature: 100°C max
  • SM 60 separator for in-line mounting

Working pressure: 600 bar max
Working temperature: 100°C max

Pressure gauge separators (558.19 KB)
