GVF

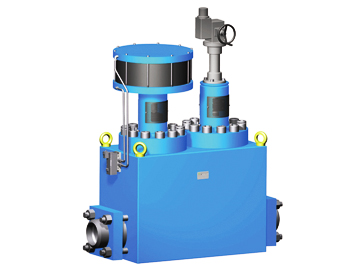

GVF - Air actuated shut-off valve group

General features

  • Air actuated shut-off valve group
  • High reliability for heavy and continuous duties
  • Open/close switching from 0.1 seconds
  • Redundant safety assured by the sequential closure of two valves
  • Electric actuator and/or manual hand-wheel
  • In-line connection (Zero Off-set)
  • Metal to metal seal
  • Proximity switches
  • Compact design
  • No welds
  • Easy maintenance

Technical data

  • Fluid Water and HFA
  • Working pressure up to 350 bar (35 MPa)
  • Ambient temperature +2°C ÷ +60°C
  • Pneumatic feeding Lubricated compressed air 5 ÷ 7 bar (0,5 ÷ 0,7 MPa)
  • Connections Standard INOXIHP drilling
  • Materials Body in carbon steel
  • Internal parts in stainless steel and bronze
GVF (318.37 KB)
